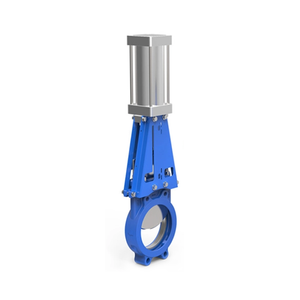

The Polyurethane Lined Knife Gate Valve is a high-quality industrial valve designed for reliable and efficient operation in various applications. This valve is equipped with a durable polyurethane lining that provides excellent resistance to abrasion, corrosion, and chemical damage, making it ideal for handling abrasive and corrosive media.
The polyurethane lining of this valve ensures a tight seal and smooth operation, reducing the risk of leakage and downtime. The knife gate design allows for quick and easy opening and closing of the valve, making it suitable for applications where fast response times are crucial.
In addition to its superior lining material, this valve features a robust construction and high-quality components that ensure long-lasting performance and minimal maintenance requirements. Its sturdy design and precise engineering make it a reliable choice for demanding industrial environments.
Overall, the Polyurethane Lined Knife Gate Valve is a top-of-the-line product that offers exceptional durability, performance, and reliability. Whether used in mining, wastewater treatment, or chemical processing, this valve is sure to meet the needs of even the most demanding applications.
Model | TBZ673X | |||
Working Pressure | DN50-DN100 16bar | DN125-DN200 10bar | DN250-DN400 7bar | DN450-DN600 5bar |
DN650-DN750 4bar | DN800-DN900 3bar | DN1000 2bar | DN1100-DN1400 1bar | |
Design Standard | MSS SP-81 | |||
Flange Standard | DIN PN10 | DIN PN10 | 150LB | JIS 10K |
TABLE E/D | ||||
Face To Face | MSS SP-81 | |||
Testing Standard | API-598 | |||
Operation | Pneumatic | |||
Main Material | F55 | F53 | 2205 | CF3M |
CF8M | CF8 | WCB | GGG40 | |
Disc Material | F55 | F53 | 2205 | SS310 |
SS316L | SS316 | SS304 | / | |
Sealing Material | NBR | EPDM | PTFE | FKM |
Graphite | Metal | / | / | |
Packing | Aramid Fiber | High-Water Based Fiber | Rubber | PTFE |
Graphite | ||||
Applicable Medium | Pulp | Cement Slurry | Gold Ore Powder | Coal Slurry |
Chemical Treatment Of Sewage | Sedimentation Tanks | Asphalt | Acid | |
Waiting For Liquid Medium |
